PIC Board PIC18F4520-I/P PIC18F4520 PIC 8-bit RISC PIC Microcontroller Development Board +14 Accessory kits =Open18F4520 Pack-B

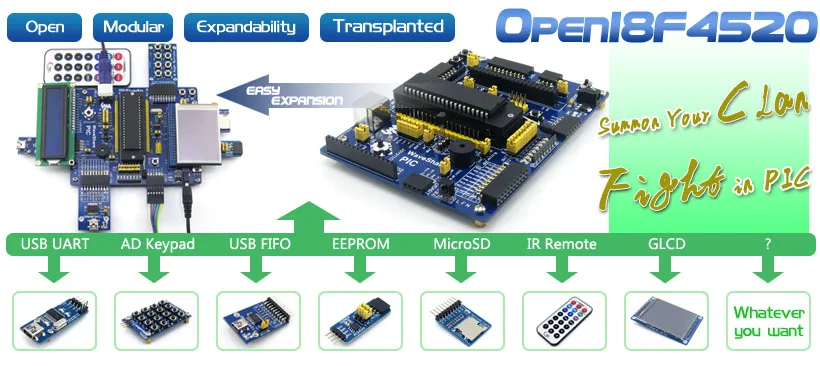

PIC development board designed for PIC18F series, features the PIC18F4520 MCU, and integrates various standard interfaces, pretty easy for peripheral expansions.

Waveshare Pack-B PIC18F4520 Board 1

Overview

Open18F4520 is a PIC development board that features a PIC18F4520 device as the microcontroller. It supports further expansion with various optional accessory boards for specific application. The modular and open design makes it the ideal for starting application development with PIC microcontroller.


What's On Board

RISC Accessory discount Pack-B 2

  1. PIC18F4520-I/P: the high performance PIC MCU which features:
    • Core: PIC 8-bit RISC
    • Operating Frequency: 40MHz Max
    • Operating Voltage: 2-5.5V
    • Package: DIP40
    • I/Os: 36
    • Memories: 32kB Flash, 1536B RAM, 256B EEPROM
    • Communication Interfaces: 1 x MSSP(SPI/I2C), 1 x A/E/UART, 2 x PWM, 8 x ADC
    • Debugging/Programming: ICSP interfaces
  2. AMS1117-3.3: 3.3V voltage regulator
  3. Power switch
  4. Power indicator
  5. LEDs: convenient for indicating I/O status and/or program running state
  6. User keys: for I/O input test and/or program control
  7. Joystick: five positions
  8. Reset button
  9. Buzzer
  10. Infrared receiver
  11. 4M crystal oscillator
  12. 16 I/Os interface | 8-bit AD interface
    • for connecting accessory boards which using I/O control, such as FT245 USB FIFO, 8 SEG LED, etc.
    • there's also 8-bit AD interface can be used for AD testing
  13. 8 I/Os interface: for connecting accessory boards which using I/O control, such as 8 Push Buttons, Motor, etc.
  14. SPI interface: for connecting SPI peripherals, such as DataFlash (AT45DBxx), SD card, MP3, etc.
  15. I2C interface: for connecting I2C peripherals, such as I/O expander (PCF8574), EEPROM (AT24Cxx), etc.
  16. 1-WIRE interface: for connecting 1-WIRE devices (TO-92 package), such as temperature sensor (DS18B20), electronic registration number (DS2401), etc.
  17. UART interface: for connecting UART peripherals, such as RS232, RS485, USB TO UART, etc.
  18. PS/2 interface: for connecting PS/2 keyboard and/or mouse
  19. Graphic multi-color LCD interface: for connecting 2.2 inch multi-color touch screen LCD which using SPI control
  20. Character LCD interface: for connecting character LCD, such as LCD1602 (3.3V blue backlight)
  21. 5V DC jack
  22. Custom crystal socket
  23. VCC power input/output: usually used for power supply output, and/or common ground with other application board
  24. MCU pins connector: all the MCU pins are accessible on expansion connectors for further expansion
  25. ICSP interface: for debugging/programming
  26. LEDs jumper
  27. User keys jumper
  28. Joystick jumper
  29. PS/2 jumper
  30. 1-WIRE jumper
  31. Buzzer jumper
  32. IR jumper
  33. VCC selection jumper
  34. Crystal selection jumper
  35. RA4 pull-up jumper

For jumper 26-32:

  • short the jumper to connect to I/Os used in example code;
  • open the jumper to connect to other custom pins via jumper wires.

Photos

Board PIC RISC Microcontroller 3
Open18F4520 Development Board 8-bit 14 Waveshare PIC18F4520-I/P 4
Connecting to touch screen LCD Waveshare  PIC18F4520 RISC 5
Connecting to character LCD 8-bit RISC Microcontroller Pack-B 6
Connecting to PICkit3
Connecting to various peripherals RISC Waveshare  8-bit 7
Connecting to touch screen LCD Last Waveshare kits Development 8
Connecting to RS232 Board via UART discount PIC18F4520 RISC  9
Connecting to USB UART Board via UART Waveshare Microcontroller kits 8-bit 10
Connecting to USB FIFO Board via 16 I/Os interface RISC PIC18F4520 Waveshare kits 11
Connecting to 8-SEG LED via 16 I/Os interface kits RISC Pack-B Microcontroller 12
8 Push Buttons on the 8 I/Os interface PIC 14 kits Development 13
AD Keypad on the 8 I/Os interface 14 Waveshare Microcontroller Development 14
Connecting to EEPROM Board via I2C  Board Accessory kits 15
Connecting to RTC Board via I2C  =Open18F4520 PIC18F4520-I/P Board 16
Multi I2C peripheral Module connected to the I2C bus Last Microcontroller 14 RISC 17
Connecting to DataFlash Board via SPI PIC18F4520-I/P Microcontroller Waveshare =Open18F4520 18
Connecting to Micro SD Board PIC18F4520-I/P  Board Pack-B 19
Connecting to any accessory board you need

Note: The Open18F4520 does NOT integrate any debugging function, a debugger is required.


ICSP Interface

The figure below shows the header pinouts of ICSP interface

PIC  discount Pack-B 20


Development Resources

The User Guide CD includes development resources listed as follow:

  • Related Software (MPLAB, etc.)
  • Demo Code (examples in C)
  • Schematic (PDF)
  • PIC Development Documentations (Datasheets etc.)

Package Contains

The "Standard Package" and "Accessory Boards Package" below are included.

Standard Package

  1. Open18F4520 development board x 1
  2. PIC18F4520 x 1
  3. 4-pin wire x 2
  4. 2-pin wire x 2
  5. USB power cable x 1
1 Microcontroller PIC18F4520-I/P kits  21 2 Microcontroller Accessory kits Pack-B 22 3 RISC Microcontroller 8-bit =Open18F4520 23 4 =Open18F4520  kits 8-bit 24 5 Board =Open18F4520 RISC 14 25

Accessory Boards Package

  1. USB type A plug to mini-B plug cable x 1
  2. PL2303 USB UART Board (mini) x 1
  3. 2.2inch 320x240 Touch LCD (A) x 1
  4. AD Keypad (for testing embedded ADC) x 1
  5. FT245 USB FIFO Board (mini) (16 I/Os) x 1
  6. AT45DBXX DataFlash Board (SPI) x 1
  7. PCF8563 RTC Board (I2C) x 1
  8. Micro SD Storage Board (SDIO/SPI) x 1
  9. NRF24L01 RF Board (B) (SPI) 2pcs x 1
  10. DS18B20 (ONE WIRE) x 1
  11. Infrared Remote Controller (IR) x 1
  12. LCD1602 (3.3V Blue Backlight) (parallel) x 1
  13. 8 SEG LED Board (16 I/Os) x 1
  14. 8 Push Buttons (8 I/Os) x 1
1 Development kits RISC Last 26 2 Development  Accessory PIC18F4520 27 3 Development Board Microcontroller Waveshare 28 4 discount kits RISC Waveshare 29 5 Development Accessory Last Waveshare 30 6 PIC18F4520 Last RISC Accessory 31 7 discount Waveshare 8-bit Development 32 8 Waveshare PIC18F4520-I/P 14 Microcontroller 33 9 discount Board PIC18F4520-I/P Accessory 34 10 PIC18F4520-I/P 8-bit PIC18F4520 =Open18F4520 35 11 Accessory RISC kits Waveshare 36 12 PIC18F4520-I/P Microcontroller 8-bit PIC18F4520 37 13 Last  Waveshare kits 38 14 Microcontroller PIC18F4520-I/P  14 39

Terms and condition

PIC18F4520 8-bit  Board 40

For large quantity please feel free to contact us for quotation!

Product Specifications

  • Model Number Open18F4520 Package B
  • Brand Name Waveshare
  • Demo Board Type Others
  • Category PIC18F Development Board
  • For use with PIC18F4520 Development & Evaluation
  • Onboard MCU Microcontroller PIC18F4520-I/P (PIC8 DIP40)
  • Supports 2.2" 320x240 touch screen LCD
  • Features Open & Modular design features various communication interfaces
  • Debugging/programming interface ICSP
  • Communication Interfaces 1 x MSSP(SPI/I2C) 1 x A/E/UART 2 x PWM 8 x ADC
  • Memories 32kB Flash 1536B RAM 256B EEPROM
  • I/Os 36

*Maybe you want to check detail specifications
